H8R SE (Special Edition) Product User Guide (502421)

Power button on the head controls all functions of the head torch:

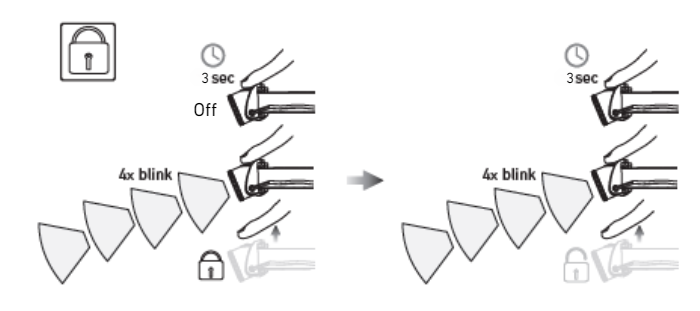

Set 'Transport Lock'

• Headtorch must be powered OFF > Hold Power button down for 3 seconds > Headtorch will blink x4 > Release Power Button > Transport Lock is ON
• Hold Power button down for 3 seconds > Headtorch will blink x4 > Release Power Button > Transport Lock is OFF

______________________________

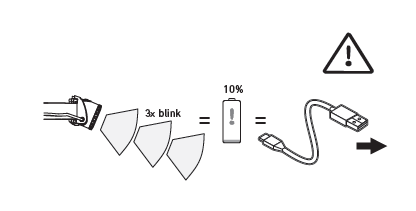

Low Battery Warning

• When the head torch is below 10% battery life it will blink 3 times in intervals until the battery is completely flat.

______________________________

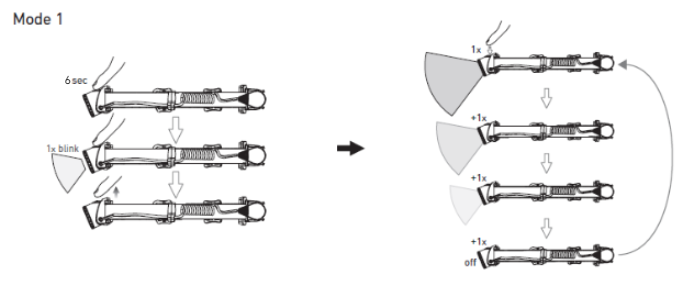

Set 'Mode 1'

• Headtorch must be powered OFF > Hold Power button down for 6 seconds > Torch will blink x1 > Release Power Button.

'Mode 1' Functions

• One press turns the light on 'High' power setting
• Additional presses (within 2 seconds) cycle through mid power, low power and then finally off.

_________________________________

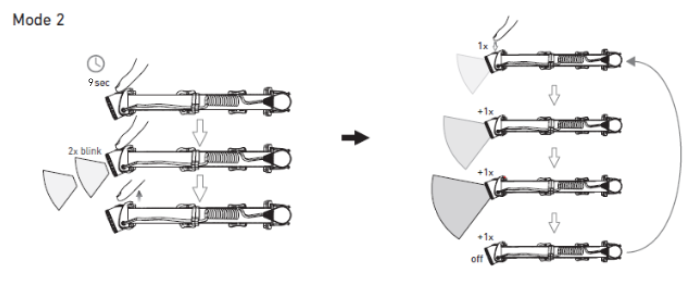

Set 'Mode 2'

• Headtorch must be powered OFF> Hold Power button down for 9 seconds > Torch will blink x2 > Release Power Button.

'Mode 2' Functions

• One press turns the light on 'Low' power setting
• Additional presses (within 2 seconds) cycle through mid power, high power and then finally off.

_________________________________

Boost

• Headtorch can be powered ON or OFF  > Press the power button x2 in quick succession > Temporary boost mode activated > Lasts for approximately 10 seconds.

_________________________________

Strobe

• Headtorch must be powered ON > Hold the power button down for 1 second > Strobe mode activated > Press power button x1 to deactivate.

_________________________________

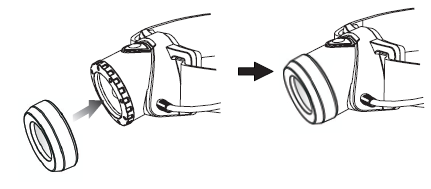

Compatible Colour Filter Set

• Please find 36mm Filter set here.

_________________________________

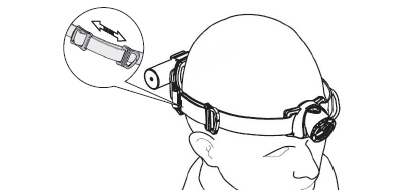

Compatible Replacement Headband

• Please find replacement headband here.
